Locus Energy

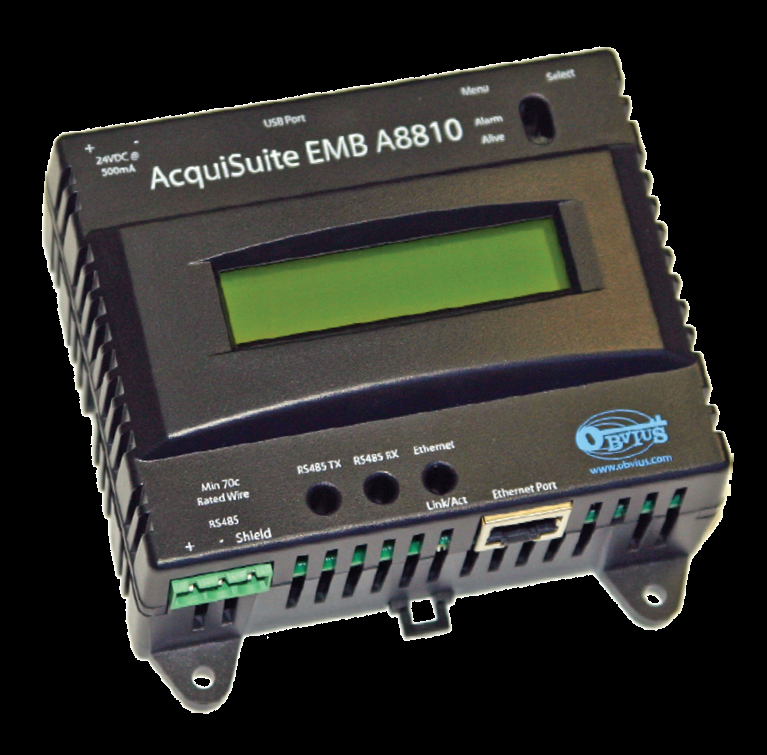

Logics PowerAMR IoT Platform integrates with Obvius AcuiSuite Data Loggers to provide end to end optimization across all sites and locations. The world class data loggers coupled with PowerAMR software platform provides the most complete solutions for every segment and user.



Specifications
Processor ARM9 embedded CPU
Operating System Linux 2.6
Memory 32 MB RAM
Flash ROM 16 MB NOR Flash (expandable with USB memory device)
Interval Recording 1 to 60 minutes, user selectable (default 15 minutes)
LEDs Ethernet, Modbus TX/RX, power, alarm
Console 2 x 16 LCD character, two push buttons

Power
Power Supply 24VDC, 500mA *This unit is to be sourced by a Class 2 power supply with the following output: 24VDC, 500mA min not to exceed 8A

Isolation RJ45 Ethernet and RS-485 port are isolated to 1500VDC from the main board. (Power and USB non-isolated)

Communication

Protocols Modbus/RTU, Modbus/TCP, TCP/IP, PPP, HTTP/HTML, FTP, NTP, XML, SNMP-Trap

LAN RJ45 10/100 Ethernet, full half duplex, auto polarity
USB USB expansion port

Inputs
Serial Port RS-485 Modbus, supports up to 32 external devices (expandable)
Physical
Weight 0.42lbs (0.19kg)
Size 4" x 4.25" x 2" (102mm x 108mm x 51mm)
Environment -30 to 70C, 95% RH, non-condensing
Codes and Standards FCC CFR 47 Part 15, Class A, EN 61000, EN 61326, CE, UL61010 Recognized
