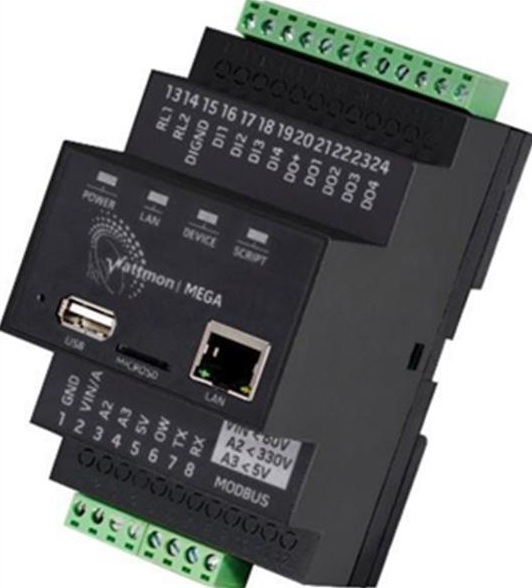

Wattmon Mega

Wattmon Solution for Zero Export and Solar DG Synchronization

Specifications



Inputs & Outputs

3 Analog Inputs: 0-5V, 6-60V, 0-330V DC

4 Digital Inputs (3 with pulse counting)

4 Digital Outputs

1 Integrated 5A relay



          Power

Wide input voltage range: 6-60VDC

High Efficiency DC-DC converter

Low Power Consumption of < 2 Watt




      Communication



RS-485 Modbus RTU port for communication with up to 30 devices

Modbus TCP for communication with up to 10 devices

RS-232 Serial Port

Dallas 1-Wire bus



       Network

100 Mbit Ethernet

3G and 4G LTE via external USB Stick



          Storage

16 GB MicroSD Card

512 KB RAM





Data Collection & Export

CSV format

HTTP / HTTPS / FTP / SFTP / MQTT / MQTTS











Characteristics

Cover Material

ABS Polycarbonate (FR -UL94V-0)

Base Material

ABS Noryl (FR - UL94V-0)

Degree of Protection

IP20 (Finger Protected)

Operating Temperature

0-65 °C

DIN Standard / Rail

DIN 43 880 / EN 50022

Dimensions (L x W x H)

130 x 70 x 75 mm

Weight

200 g
