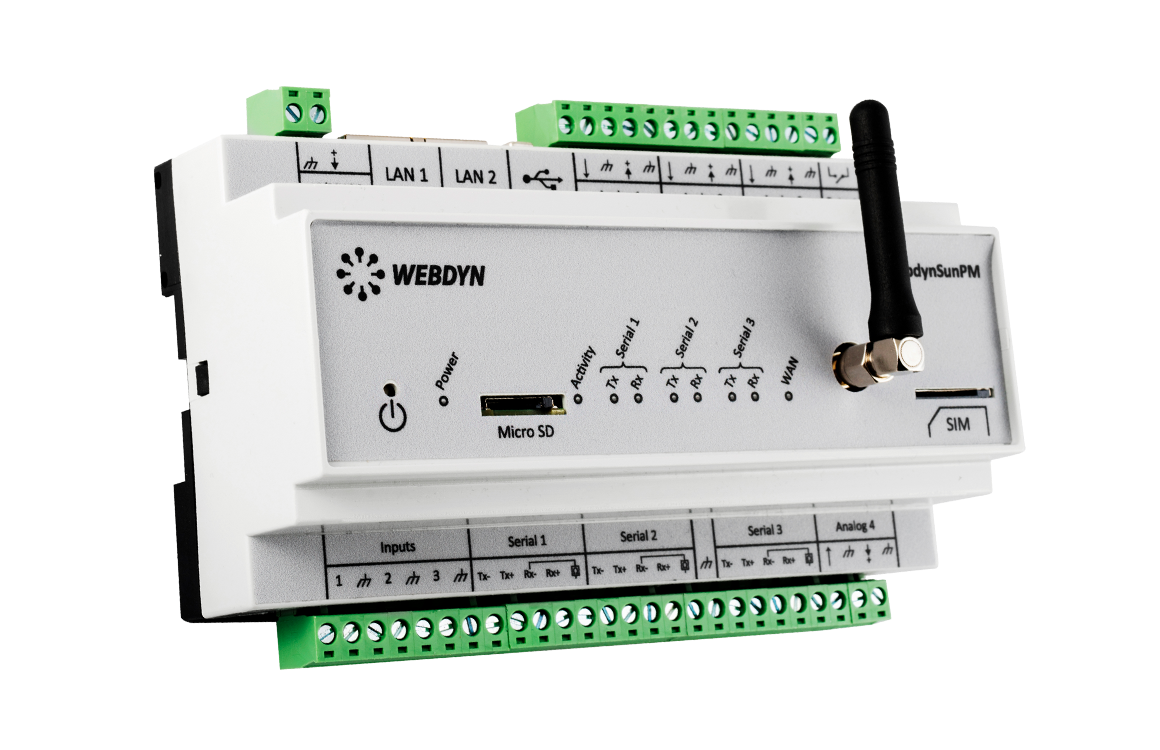

The WebdynSunPM concentrator together with Logics PowerAMR IoT Platform is used to monitor and control your photo-voltaic installations by collecting, analysing and modifying your equipment parameters. Modulate the power injected to the grid through zero export solutions, optimise the solar generation through DG Synchronziation, optimise energy storage or manage your own consumption. A tailored consolidated solution to monitor, control and optimise your photovoltaic installations.
| Description | WebdynSunPM |
|---|---|
| Serial Interfaces | 3 x RS485 - RS422 ports |
| GPIO I/O Interfaces | 4 analog inputs 0/10V-4/20mA - 3 ON-OFF or pulsed inputs - 1 relay input |
| IP network interfaces | 2 x ethernet 10/100Mbits/s - GSM/GPRS/EDGE/3G/Modem |
| Operating temperature | -5°C/+50°C |
| Storage temperature | -20°C/+85°C |
| DC power supply output for the logger | +12/24v - 4W (max) |
| Input power supply from the field | 100-240V AC, 50Hz, 1 phase supply |
| Data sampling rate | 100ms (ultra fast) |
| Local storage | Upto 6 months bases on 15min interval |
| No. of Modbus devices than can be monitored in a single daisy chain lenght upto 800m | Upto 247 (included Mobdus inverters, meters, sensors...) |
| No. of proprietary protocol based inverters than can be monitored | Upto 100 (depends onto inverters manufacturer's declared limit) |
